Boya Omic-U Ultracompact 2.4GHz Dual-Channel Wireless Microphone System (Type-C)

Boya Omic-U Ultracompact 2.4GHz Dual-Channel Wireless Microphone System (Type-C)

Products Information:

• Easy Automatic Connection : BOYA Omic-U microphone does not require any driver. Simply plug the receiver into your recording device, turn on the receiver, and it will automatically pair for use.Note: Make sure the USB OTG in Setting of your device is on

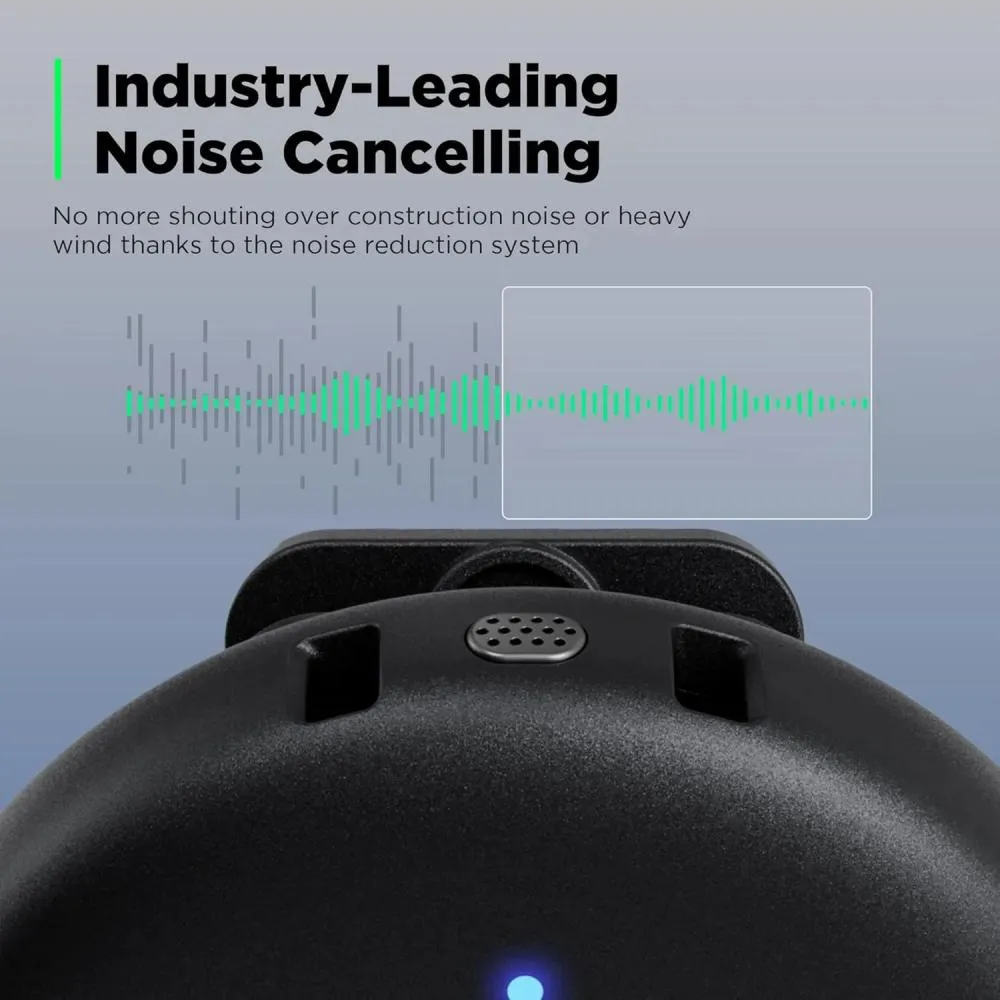

• Smart Noise Reduction : BOYA Omic-U has mute and noise reduction functions. Double-click Noise Reduction to significantly reduce ambient noise. Provides 48kHz high-definition sound quality and reduces post-editing work.

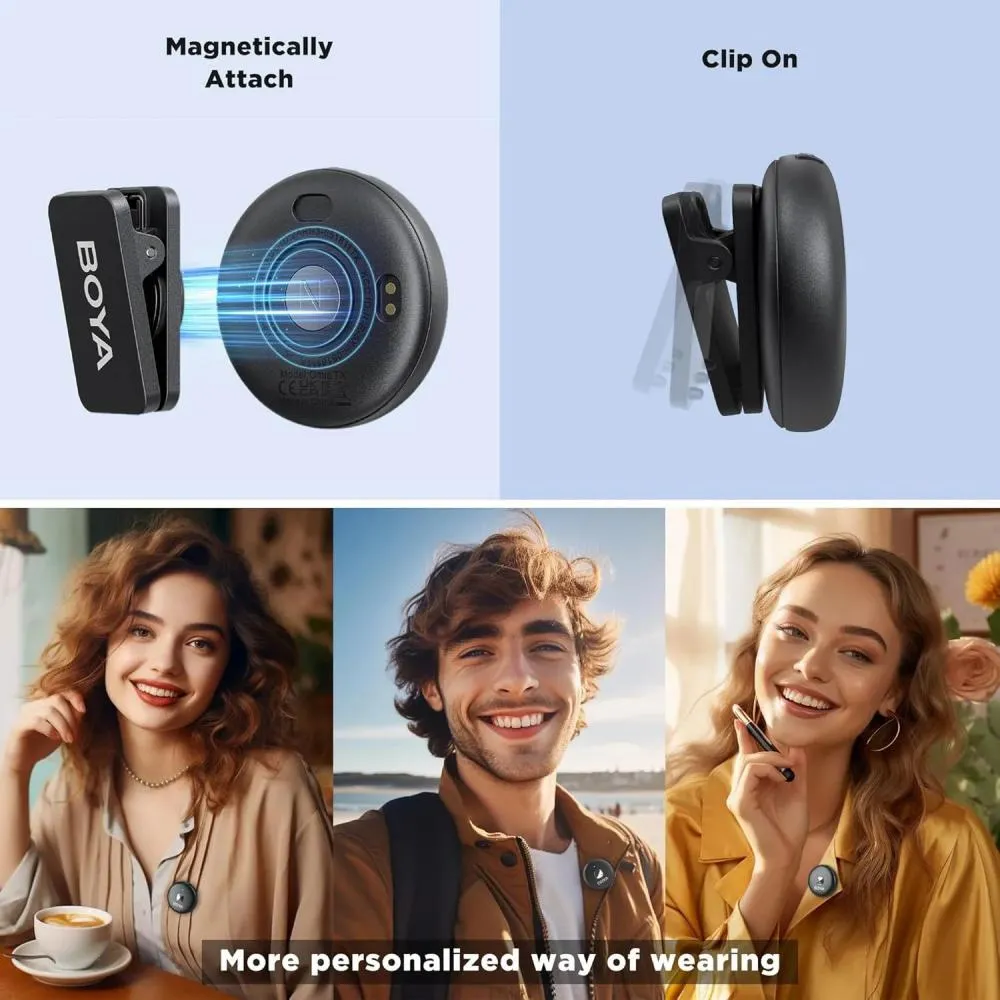

• Magnetic Back Clip : The transmitter back clip has been upgraded to a magnetic back clip, making it easier to disassemble. It is easier to clip on clothes and is stable and will not fall off.

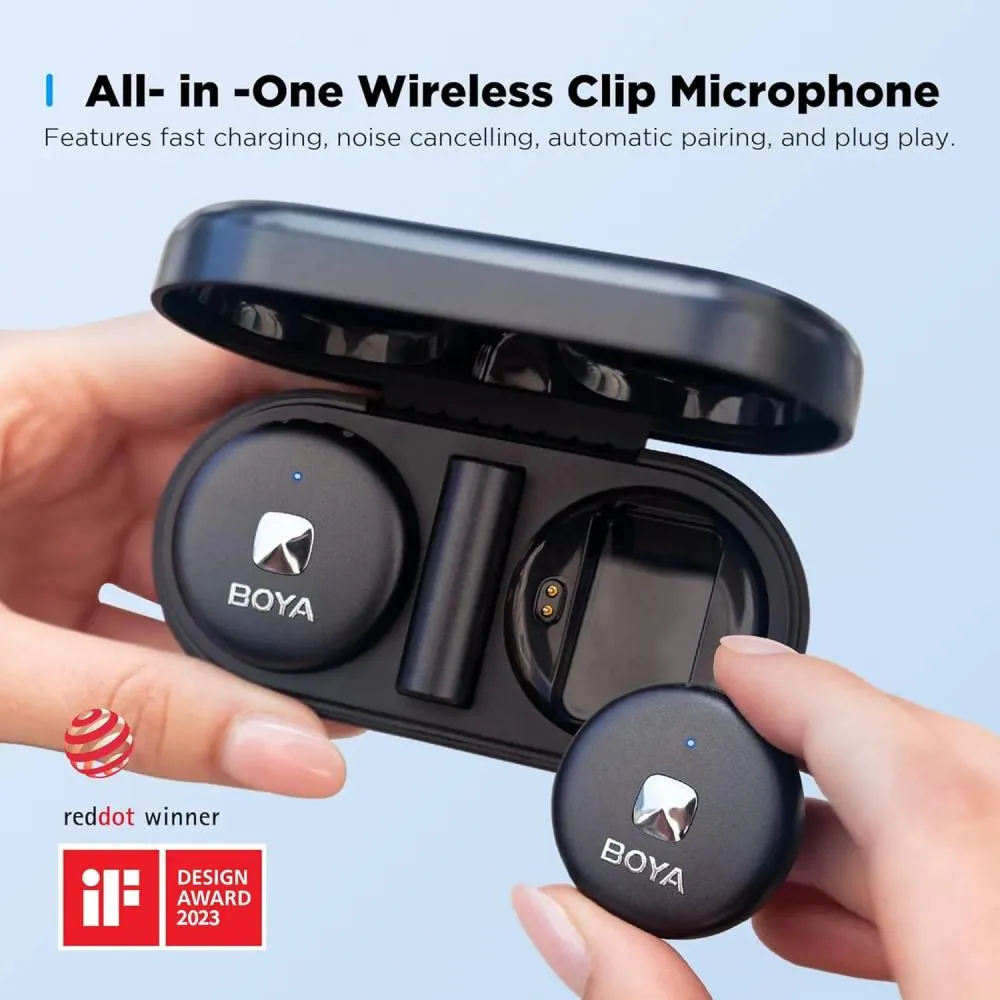

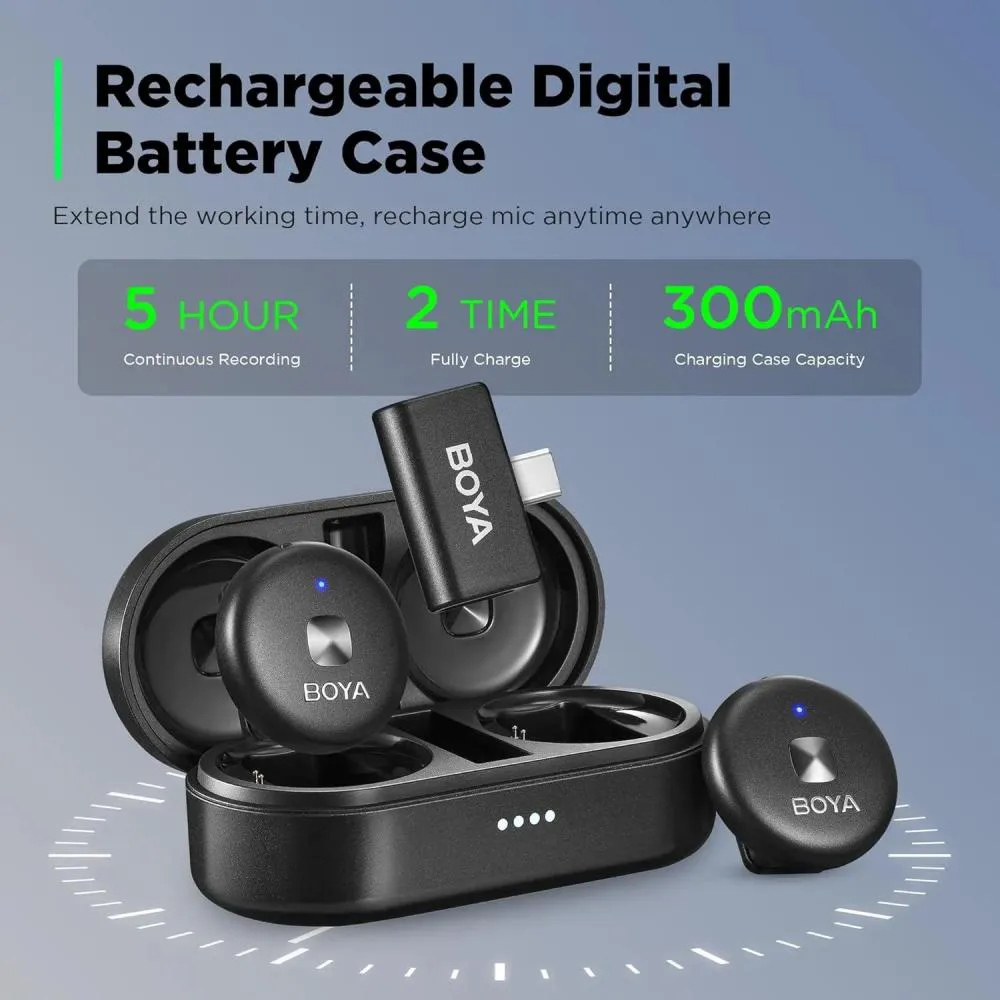

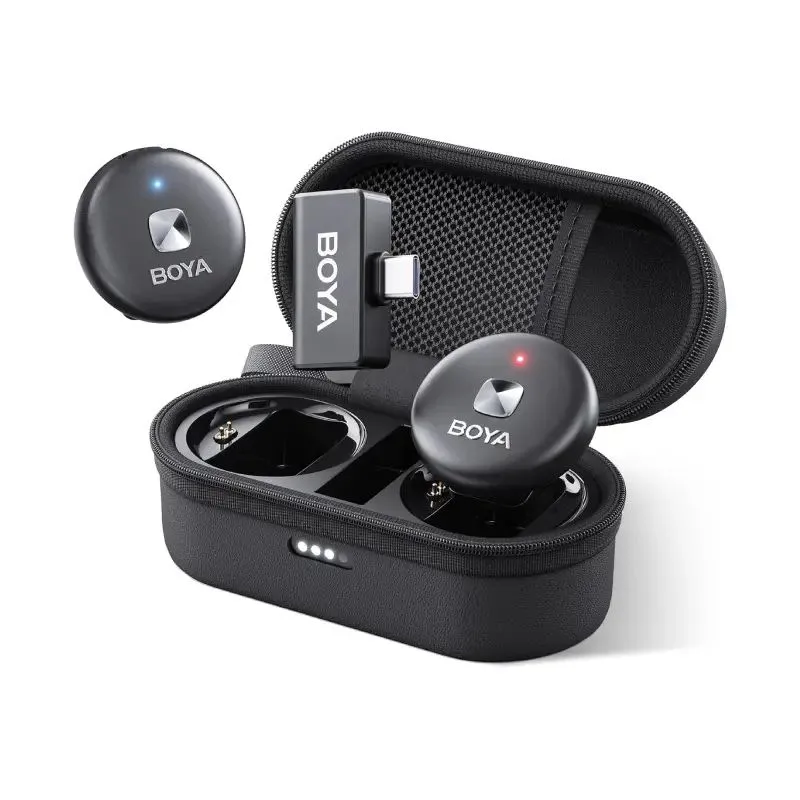

• Portable Charging Case : BOYA Omic-U comes with a charging case. The microphone has a built-in rechargeable lithium battery with a battery life of up to 5 hours, and the charging box can be used for up to 15 hours. You can charge the device through the transmitter while recording without fear of recording interruption.

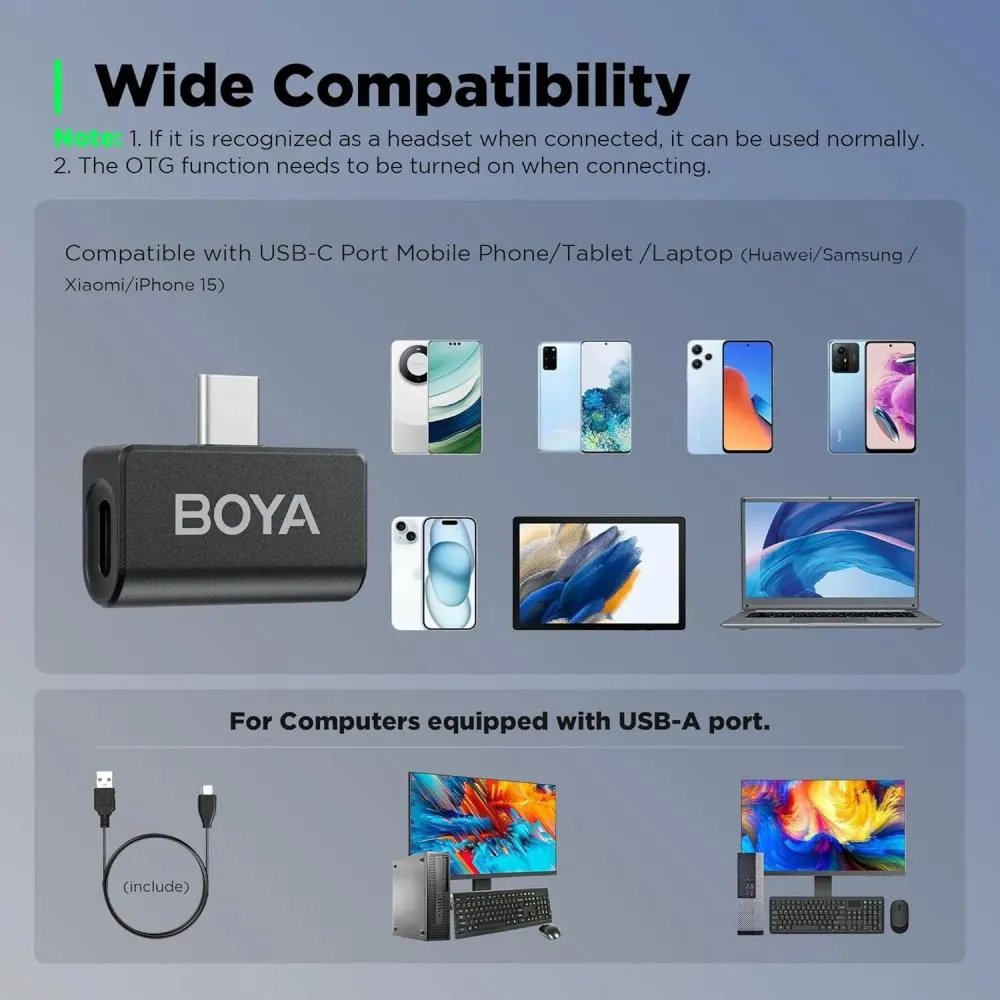

• Wide Compatibility: The transmitter comes with a USB-C adapter, which can support devices with Type-C ports, such as OSM Action 2/3, Samsung/LG/Pixel/Android tablets.

 Omic TX Transmitter:

• Transmission Type: 2.4GHz digital frequency
• Modulation: GFSK
• Polar Pattern: Omnidirectional
• Antenna: PIFA
• Operating Range (Without Obstacle): Up to 50m
• RF Output Power: 10dBm
• Distortion: ≤0.1%
• Frequency Response: 20Hz-20kHz
• Sampling Rate: 48kHz
• Bit Rate: 16bit
• Signal-to-Noise Ratio: ≥80dB
• Audio Input: ln-built microphone capsule
• Battery Capacity: 50mAh
• Power Requirements: In-built lithium-ion battery/Charging contacts
• ln-built Battery Life: Approx. 5 hours
• Charging Time: Approx. 2 hours
• Weight: 15.5g
• Dimensions: 36×36×9.7mm
• Operating Temperature: 0℃ to +50℃
• Storage Temperature: -10℃ to +50℃

Omic RXU Receiver

• Transmission Type: 2.4GHz digital frequency
• Modulation: GFSK
• Polar Pattern: Omnidirectional
• Antenna: PIFA
• Operating Range (Without Obstacle): Up to 50m
• RF Output Power: 10dBm
• Distortion: ≤0.1%
• Frequency Response: 20Hz-20kHz
• Reference Audio Input Level: -30~-42dBV(MIC input, 0dB gain)
• Sampling Rate: 48kHz
• Bit Rate: 16bit
• Signal-to-Noise Ratio: ≥80dB
• Audio Output: USB-C digital output
• Power Requirements: Powered by an external device
• Weight: 6g
• Dimensions: 35.5×18.5×10 mm
• Operating Temperature: 0℃ to +50℃
• Storage Temperature: -10℃ to +50℃

Omic CC Charging Case

• Battery Voltage/ Capacity: 3.7V/ 300mAh
• Charging Time: Approx.3 hours
• Charging Connector
• USB-C port or wireless charging:
• Times for Charging Microphone: 2 times (2*TX)
• Weight: 90g
• Dimensions: 96×46.5×37 mm
• Operating Temperature: 0℃ to +50℃
• Storage Temperature: -10℃ to +50℃

Packing List

• Omic TX Transmitter *2
• Omic RXU Receiver *1
• Fur Windshield *2
• USB-A to USB-C Cable *1
• Omic CC Charging Case *1
• Carrying Pouch *1
